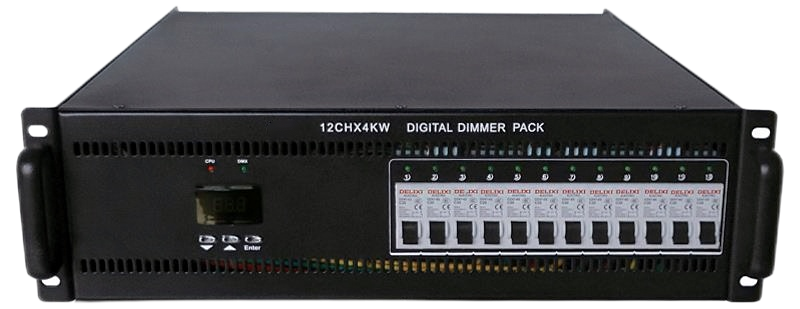

HT-V12G

12-way 4KW digital dimming Silicon Box

Technical parameters:

Power supply: three-phase five-wire AC380V± 10%, frequency 50Hz± 5%.

Signal interface: Digital dual DMX-512(1990).

Rated power: 12 channels x 4KW. The maximum output power of each loop can reach 4kW.

Functional features:

1. The silicon controlled chip, the core device of the silicon box, is made of imported materials with stable and reliable performance.

2. Good cooling device and forced air cooling combined with intelligent environmental control system.

3. Highly efficient anti-jamming choke has strong anti-jamming ability, low noise, current rise time 220us-450us.

4. Start loop setting and preheating value setting.

5. The dimming curve can be set to linear or switch state, and the switch value is 50%. Under the switch state, when the input brightness value is greater than or equal to 50%, the corresponding output loop is full output; otherwise, there is no output.

Overall dimension (mm):L515×W485×H133

Machine weight :19KG.
